The ice cream stick chamfering machine is also called ice cream stick edge rounding machine, which is the professional equipment for further processing of ice cream sticks, tongue depressor. It is mainly used to chamfer the acute angle side into smooth half round side in order to make the ice cream sticks more standard and good looking.
WhatsApp/WeChat:
+8613837123571E-mail:

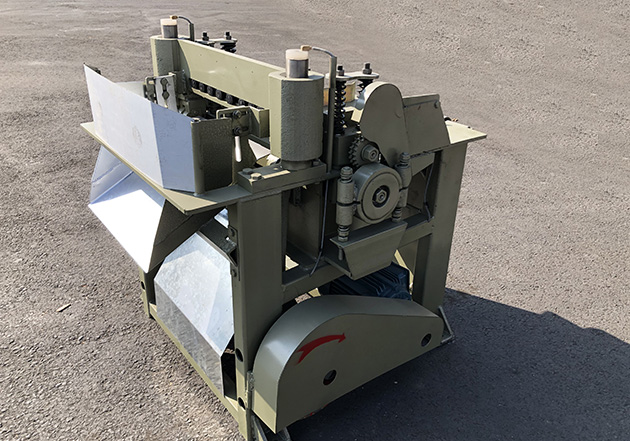

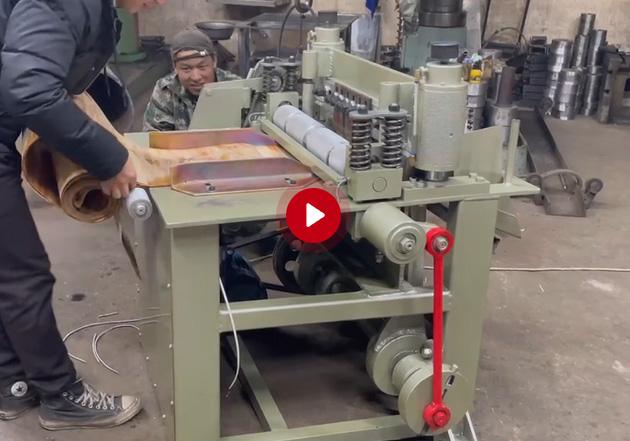

xhjohn@zzkunchi.comThe die cutting machine also called carved cutting machine, stick punching machine, blanking machine, which is the main equipment for making ice cream sticks, tongue depressor, coffee stirring stick, ice cream spoons, wooden spoon, wooden fork, wooden knife,etc, the raw material is the veneer.
The numerical control die cutting machine supplied by us for now is the newest generation product, which is the most professional and advanced machine in China market, the feeding roller adopts full sealed bearings and lubricated by lubricating oil automatically, besides, the most important thing is the machine is equipped with the newest feeding system, which is more easier to operate, and the speed is more faster. so the working life of which is 2-3 times than other similar machines in the market as well as the working efficiency.
1. Simple and compact structure, which is easy to operate and maintain.

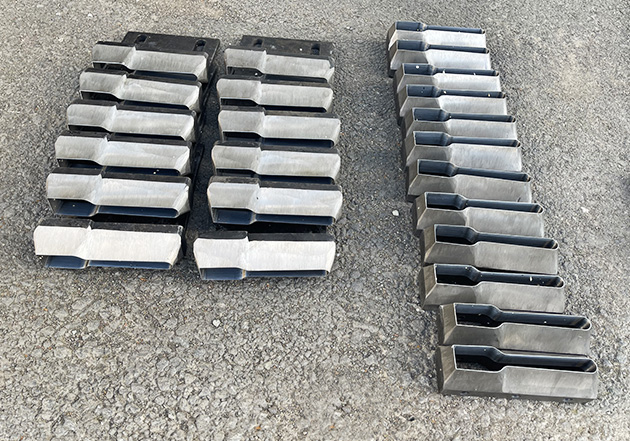

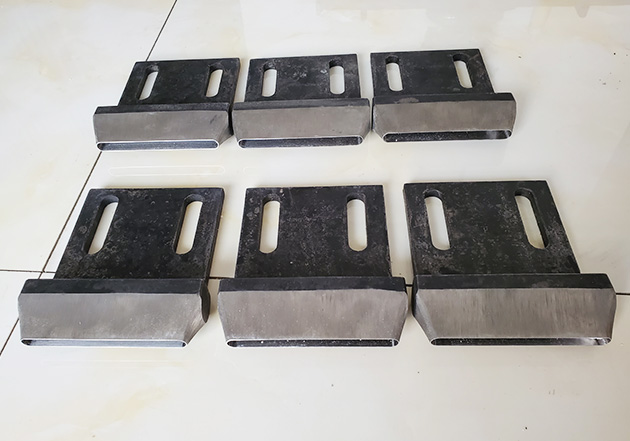

2. Wide application by changing the punching blades.
3. The rotating speed of 500rpm which guarantee the high working efficiency.
4. Feeding step can be adjusted freely by the new numerical control feeding system.
5. The max cutting layers of the veneer can reach 8-9 layers at one time.
| Model | CQ-3NS | CQ-3NSW |
| Total power | 2.2KW | 2.2KW |
| Working capacity | 0.5-1CBM | 1-1.5CBM |
| Punching thickness range | 16-20mm | 16-20mm |
| Main shaft speed | 500rpm(frequency control) | 500rpm(frequency control) |
| Max feeding width | 460mm | 550mm |
| Machine size | 1150*1000*1130mm | 1150*1100*1130mm |
| Machine weight | 550kg | 660kg |
