The bamboo wood stick counting and packing machine is also called incense stick counting and packing machine, which is developed according to the characteristics of Buddha incense, mosquito-repellent incense industry specially developed automatic bamboo skewer (long incense) count packaging machine.
WhatsApp/WeChat:
+8613837123571E-mail:
xhjohn@zzkunchi.comThe bamboo wood stick counting and packing machine is also called incense stick counting and packing machine, which is developed according to the characteristics of Buddha incense, mosquito-repellent incense industry specially developed automatic bamboo skewer (long incense) count packaging machine.
Applicable to Buddha incense (long incense), mosquito fly incense king, six generations incense, stick incense, bamboo stick incense and other incense counting and packaging.
All the automation of the assembly line, simple control, high stability, low scrap rate, greatly saving labor, improve production efficiency, safety and health, reliable quality, after-sales service.
1. The machine adopts servo motor, PLC and touch screen, stepping motor, maximize the control accuracy, adjustment range, reliability and intelligence of the whole machine.
2. The counting part adopts high-quality double-step simple mechanical counting structure, high-precision optical fiber detection, accurate and reliable counting, easy maintenance, less wear, long life.

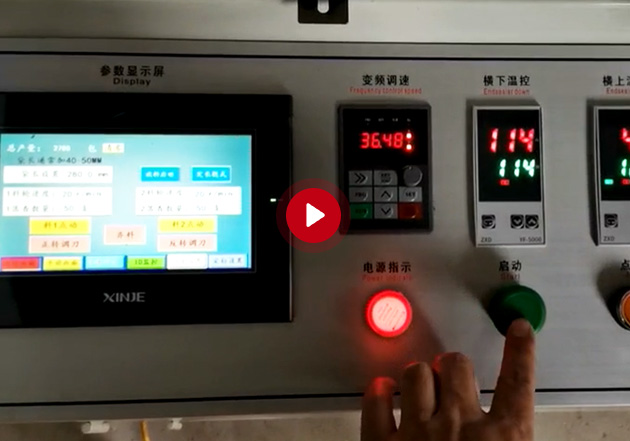

3. The bag length through the touch screen digital setting operation is convenient and accurate.
4. Using servo film feeding, can set the bag length digitally, can also track the color code
5. Mechanical anti-cutting structure, can protect materials, protect the tool and its linkage structure.
6. Push material resistance structure, prevent random material resistance, protect the push structure and material loss.
1. High packaging efficiency, stable performance, easy operation and maintenance, low failure rate;
2. The equipment can run continuously for a long time;
3. Good sealing performance, beautiful packaging effect.
4. Wide range of packaging. Scope of application: Suitable for bamboo, Buddha incense (long incense), strip and rod products (1-100) packaging, input parameters automatically count packaging
| Name | Wood bamboo skewer/ incense stick counting packing machine |
| Model | KC-350DS |
| Power | 2.8KW/220V/50HZ |
| Working speed | 20-80bags/min |
| Packing style | Three sides sealing |
| Thickness of film accepted | 0.018-0.06mm |
| Max width of film accepted | 350mm |
| Length range of sticks | 180-500mm |
| Bag length range | 220-550mm |
| Packing height | under 50mm |
| Machine size | 2250*1320*1480mm |
| Machine weight | 650kg |
