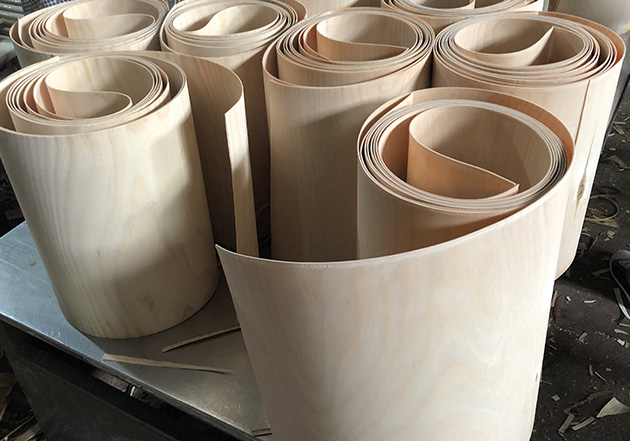

The veneer peeling machine also called rotary cutter, rotary cutting machine, veneer peeling lathe, it is used for producing wood veneers with different thickness from the short-cut wood, which is the main machine for producing wooden products, such as disposable wooden cutlery, wooden ice cream stick, coffee stirring stick, tongue depressor, etc.
WhatsApp/WeChat:
+8613837123571E-mail:
xhjohn@zzkunchi.comThe veneer peeling machine also called rotary cutter, rotary cutting machine, veneer peeling lathe, it is used for producing wood veneers with different thickness from the short-cut wood, which is the main machine for producing wooden products, such as disposable wooden cutlery, wooden ice cream stick, coffee stirring stick, tongue depressor, etc.

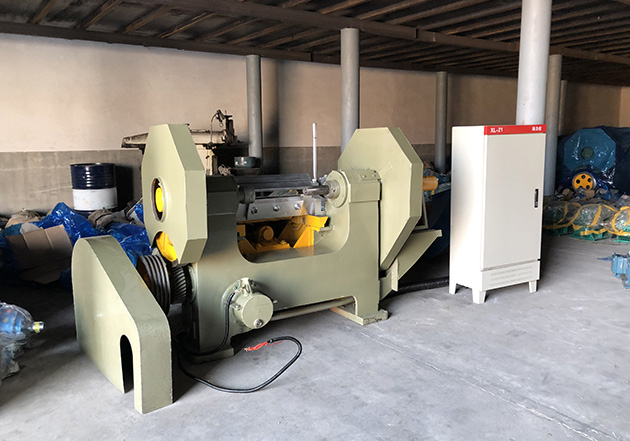

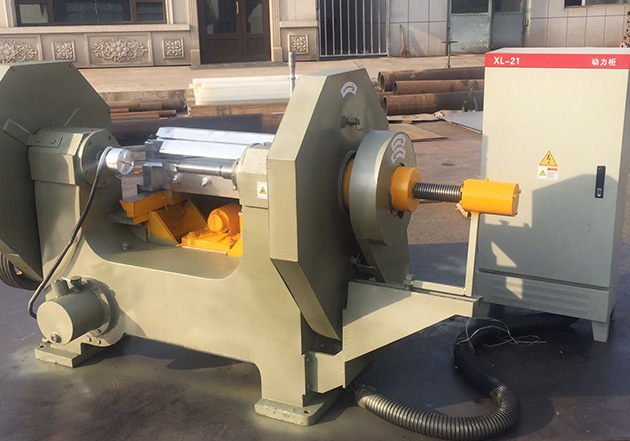

The veneer peeling machine(XQ-2N&XQ-2NS) provided by KUNCHI company belongs to the heavy equipment, the frame is cast from high strength steel, that guarantees the stable performance during working, it has high peeling accuracy and high working efficiency, which is popularly enjoyed the clients from all over the world.
With the development of science and technology, digital servo control technology is also used in the production of rotary cutting machine, the emergence of CNC rotary cutting machine not only improves the quality and precision of the production of veneer, but also improve the production efficiency and automation of the whole machine. Minimum rotary cutting diameter up to 45mm maximum rotary cutting diameter up to 800mm.
The biggest research and development of high-precision CNC rotary cutting machine is the operation speed, the high-speed operation of CNC rotary cutting machine has high precision reliability.(running speed of 280 revolutions per minute, precision 0~0.05mm), low speed rotary cutting machine (below 200 revolutions per minute rotary cutting machine for low speed rotary cutting machine) rotary precision reliability is poor.
| Name | Rotary cutting machine |
| Model | XQ-2N/2NS |
| Total power | 20.2/22.7KW |
| Main shaft speed | 0-220rpm |
| Max processing width | 520mm |
| Max processing diameter | 800mm |
| Minimum processing diameter | 45mm |
| Veneer thickness range | 1-2.3mm(XQ-2N)/0.05-7mm(XQ-2NS) |
| Machine size | 2200*1900*1300mm |
| Machine weight | 2300kg |
